JXY4D
Color
-
Colors
-
红色
-
黑色
-
Motor Power
500W
Battery
48V 20Ah Lead Acid Batteries
Tire
F 90/70-10 / R 300-10 tubeless
Brake
F/R drum brake
Speed
3 Speeds 25KM/H Max.
Max.Load
150KG
Cruising Range
35-45 KM
Wheel Base
86CM
Wheel Distance
58CM
- Technical Details
-
- Commodity name: JXY4D
- Motor Power: 500W
- Battery: 48V 20Ah Lead Acid Batteries
- Tire: F 90/70-10 / R 300-10 tubeless
- Brake: F/R drum brake
- Speed: 3 Speeds 25KM/H Max.
- Max.Load: 150KG
- Cruising Range: 35-45 KM
- Wheel Base: 86CM
- Wheel Distance: 58CM
Product Size

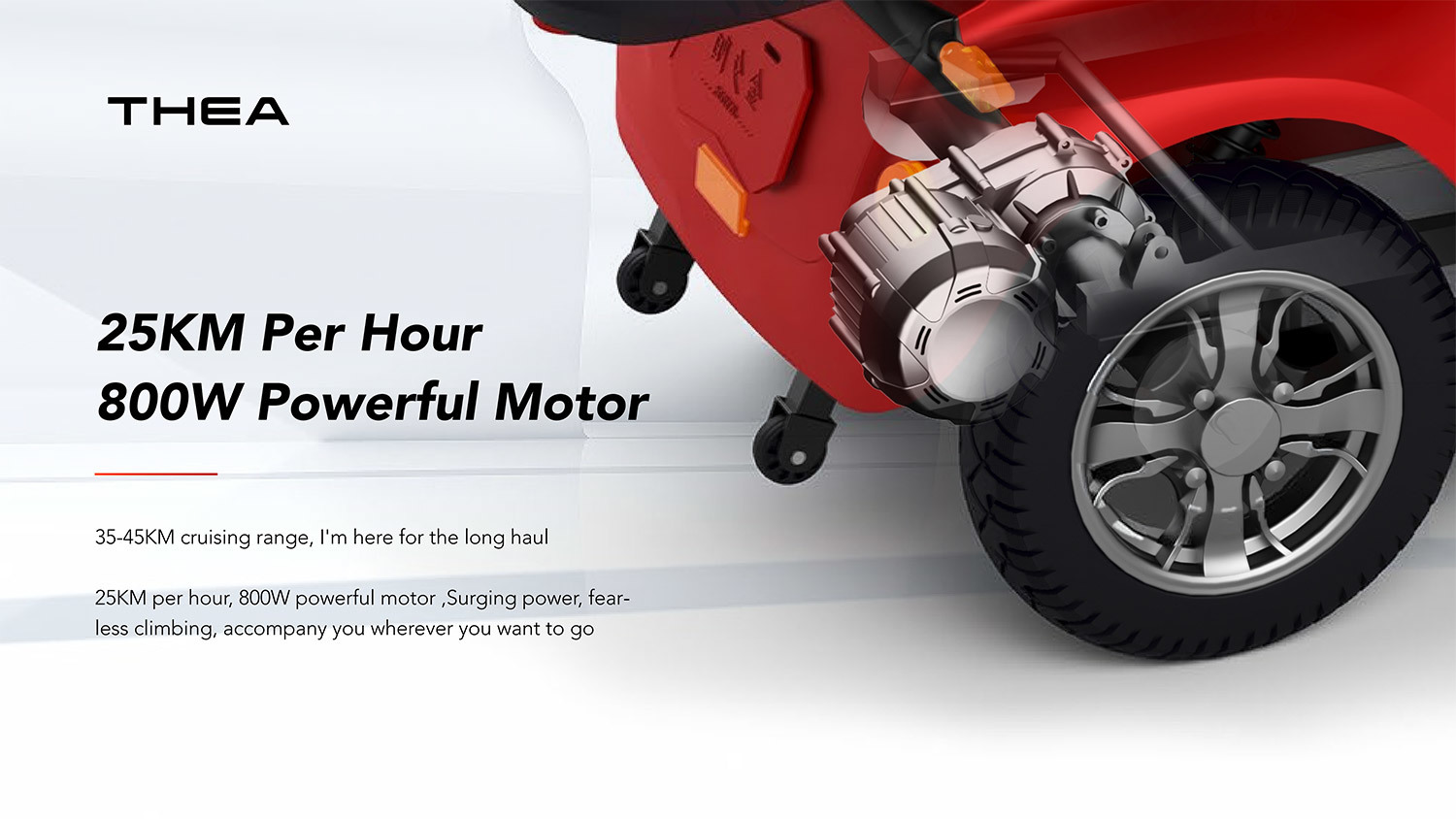

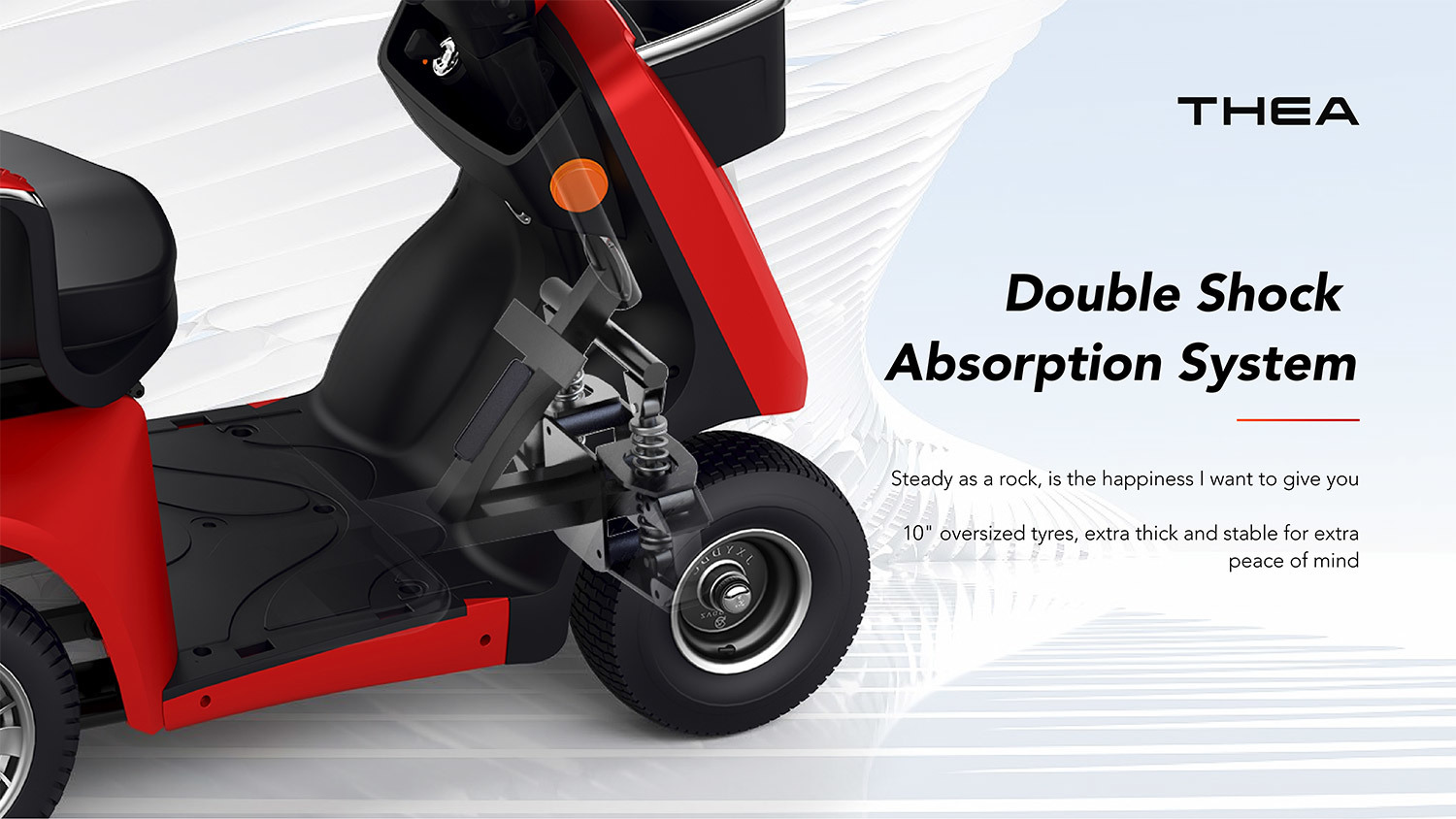

Model: JXY4D Climbing capability: 20° Size： 144*70*103CM Cruising Range: 35-45 KM Transmission : Gear box Speed: 3 speeds 25 KM/H max. Wheel base: 94cm Brake system: F drum brake R disc brake TIre size: F 13*500-6 / R 300-10 tubeless Braking distance： ≤4M Wheel distance: F 50CM / R 60.5CM Controller: 15 tubes 60V Ground clearance: 12CM Rim: Alu. Alloy Voltage: 60V Charging time: ≤8H Motor power: 800W Max. load: 150KG Battery: 60V 20Ah Lead Acid Batteries Gross weight: 130KG Suspension: F independent suspension
R flat fork shock absorption
Packing size: 146*73*115CM
